Prepare Edge Host

Edge clusters are Kubernetes clusters configured on Edge hosts. These hosts can be either bare metal or virtual machines and must have the Palette agent installed.

In this tutorial, you will learn how to install the Palette agent on your virtual or physical host. You will boot the host using the Edge installer ISO created in the Build Edge Artifacts tutorial, and then register the host with Palette. Once registered, the host will be ready to be part of an Edge cluster.

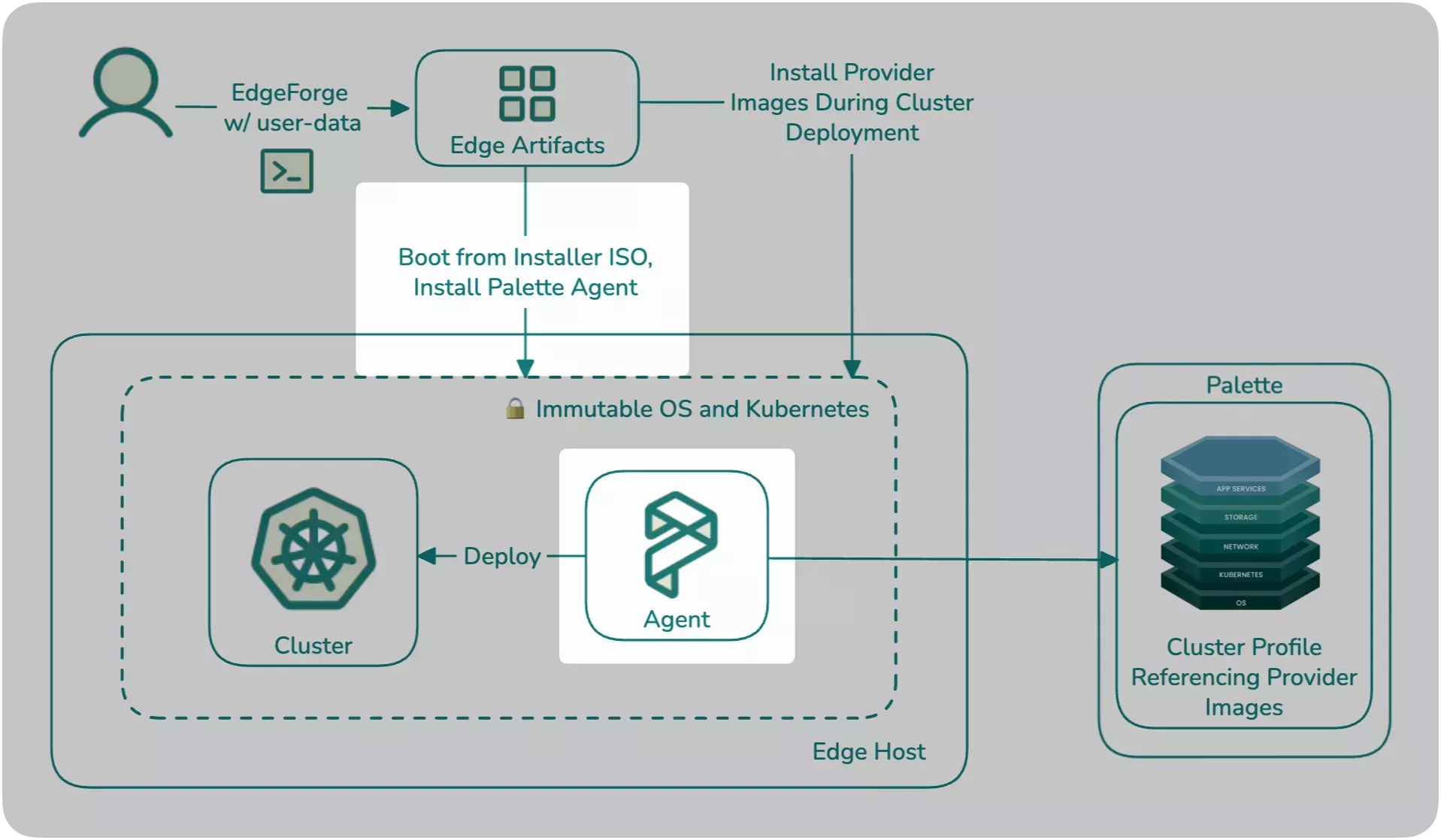

Palette Edge architecture diagram

Prerequisites​

  • A bare metal or virtual Linux host with an AMD64 processor architecture (also known as x86_64) and the following minimum hardware specifications.
    • 2 CPUs
    • 8 GB memory
    • 150 GB storage
  • If you plan to use a virtual machine as the Edge host, ensure that you have a VMM (Virtual Machine Manager) installed. This tutorial uses VirtualBox version 7.0 as an example. Additionally, the underlying physical host must allow the creation of a VM that meets the same minimum hardware requirements.
  • The Edge installer ISO file built in the Build Edge Artifacts tutorial. If you are using a physical device as the Edge host, ensure the device has USB ports, the ISO file is flashed to a USB drive, and you are able to modify the host's boot order settings to boot from the USB drive.
  • A DHCP-enabled network with at least one available IP address for the Edge host.
  • A Palette account.
  • The host must have access to the internet.

Set Up Edge Host​

Once the Edge artifacts and cluster profile have been created, you can proceed with the VirtualBox VM deployment. The VM will use the Edge installer ISO to bootstrap the Edge installation and serve as the Edge host for your cluster.

Launch the VirtualBox application and click New to create a new VM.

Give the machine a name, for example, edge-vm.

In the ISO Image field, select the Edge installer ISO file you built in the Build Edge Artifacts tutorial. The ISO file is located in the CanvOS/build directory.

Set the machine Type as Linux and the Version as Ubuntu (64-bit), and click Next.

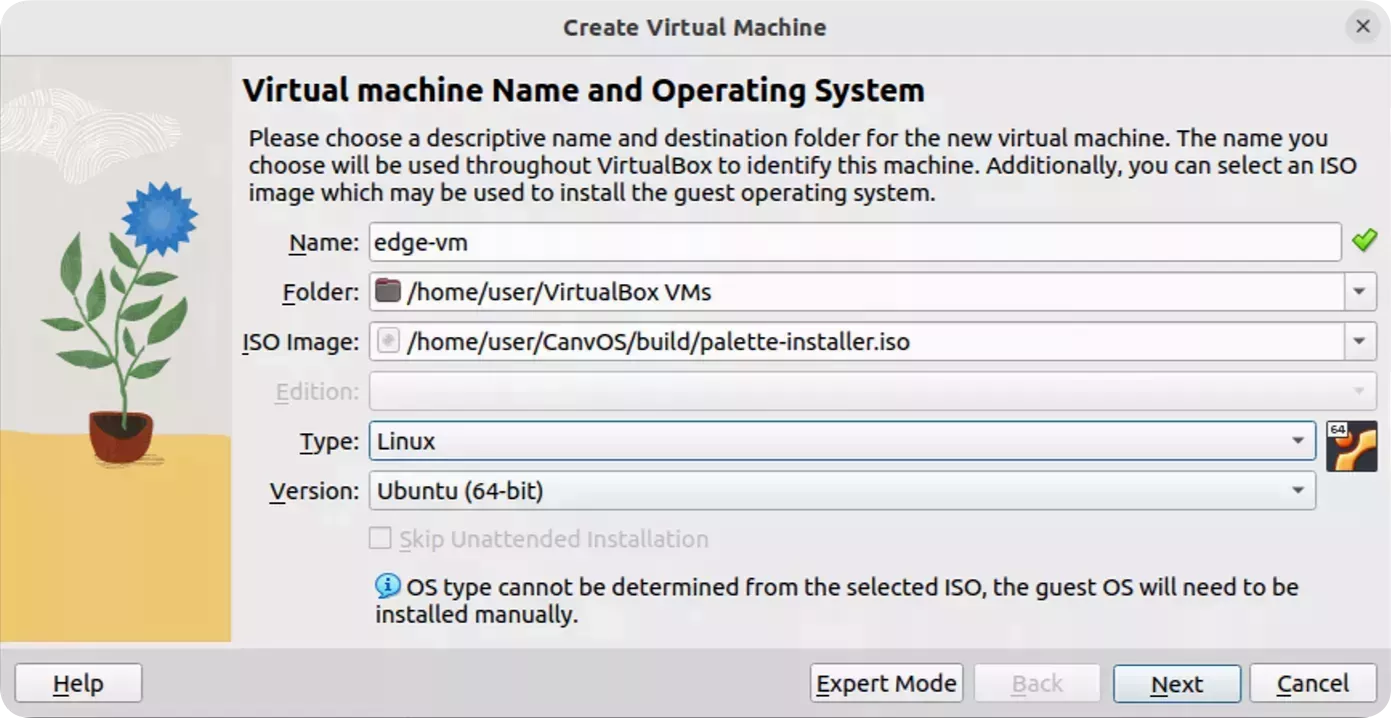

A screenshot of the VirtualBox VM configuration.

Adjust the Base Memory to 8000 MB and Processors to 2 CPU. Click Next to proceed.

Set the Disk Size to 150 GB and ensure the option Pre-Allocate Full Size is not checked. Click Next.

info

These are the minimum hardware requirements for an Edge host. In production environments, the required configuration may vary.

Confirm the VM settings and click Finish to create the VM.

Select the VM to adjust its network settings. Click Settings, then select Network.

Change the Attached to: option from NAT to Bridged Adapter. This allows the VM to receive an IP address from the same network as the host. Click OK.

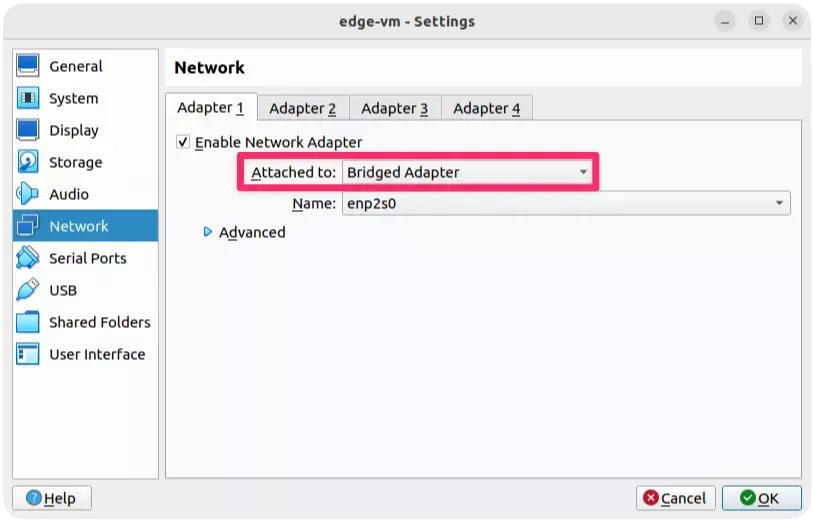

A screenshot of the VirtualBox VM network configuration.

Select the created VM and click Start to turn it on. The Edge installer bootstraps the Palette Edge installation onto the VM.

Wait for the Edge Installer to complete copying content to the VM. This process may take a few minutes. When the installation is complete, the VM shuts down automatically. This behavior is configured in the user-data file, as specified in the Prepare User Data tutorial with the line poweroff: true.

After the VM powers off, select it in VirtualBox. Click Settings, then select Storage.

Select the Edge installer ISO and click Remove Attachment to remove it from your VM. Confirm the deletion with Remove and click OK to close the settings window. Leaving the installer ISO attached would cause the VM to boot from it again, restarting the installation process.

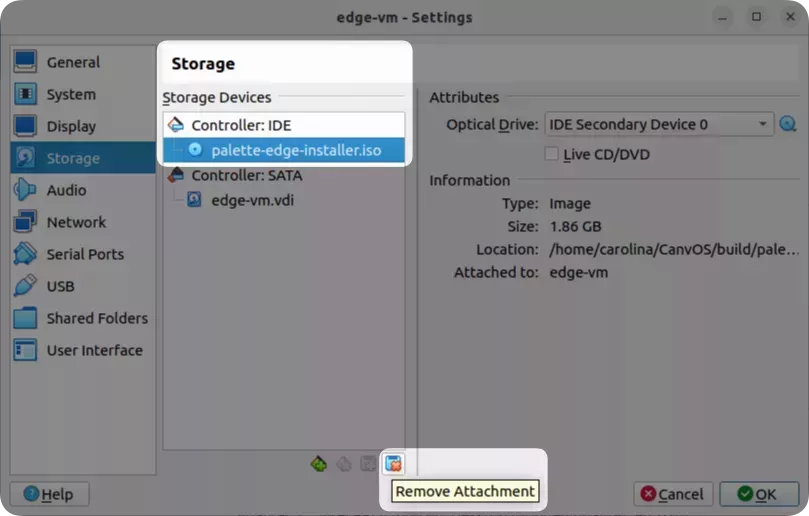

A screenshot of the VirtualBox VM storage configuration.

Register Edge Host​

To register the host with Palette, select the VM in VirtualBox and click Start to power it on. The VM boots and obtains an IP address from the host machine's bridged network.

After a few minutes, the VM screen displays an IP address and automatically registers with Palette as an Edge host, using the registration token provided in the user-data file during the Prepare User Data for Edge Installation tutorial.

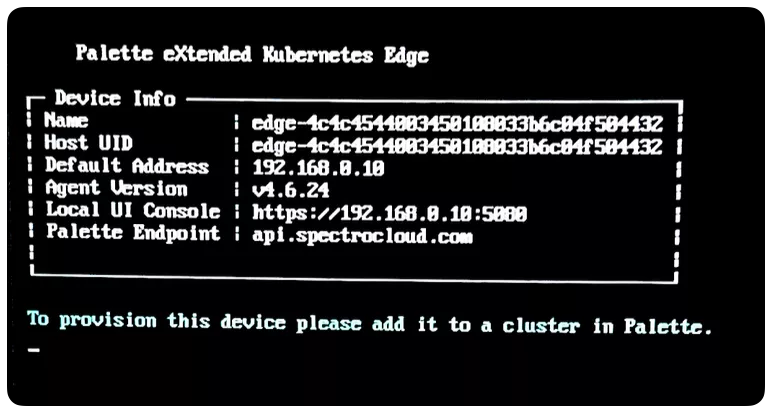

A screenshot of the Edge host.

tip

You can provide site-specific Edge installer configuration user data if you need to apply new values or override default values from the Edge installer user data you created during the EdgeForge process. Refer to Apply Site User Data for more information.

Log in to Palette. From the left main menu, select Clusters. Click the Edge Hosts tab to view the registered hosts.

Confirm that your Edge host is listed with a Healthy and Ready status. The Machine ID displayed in Palette should match the ID displayed on the VM screen.

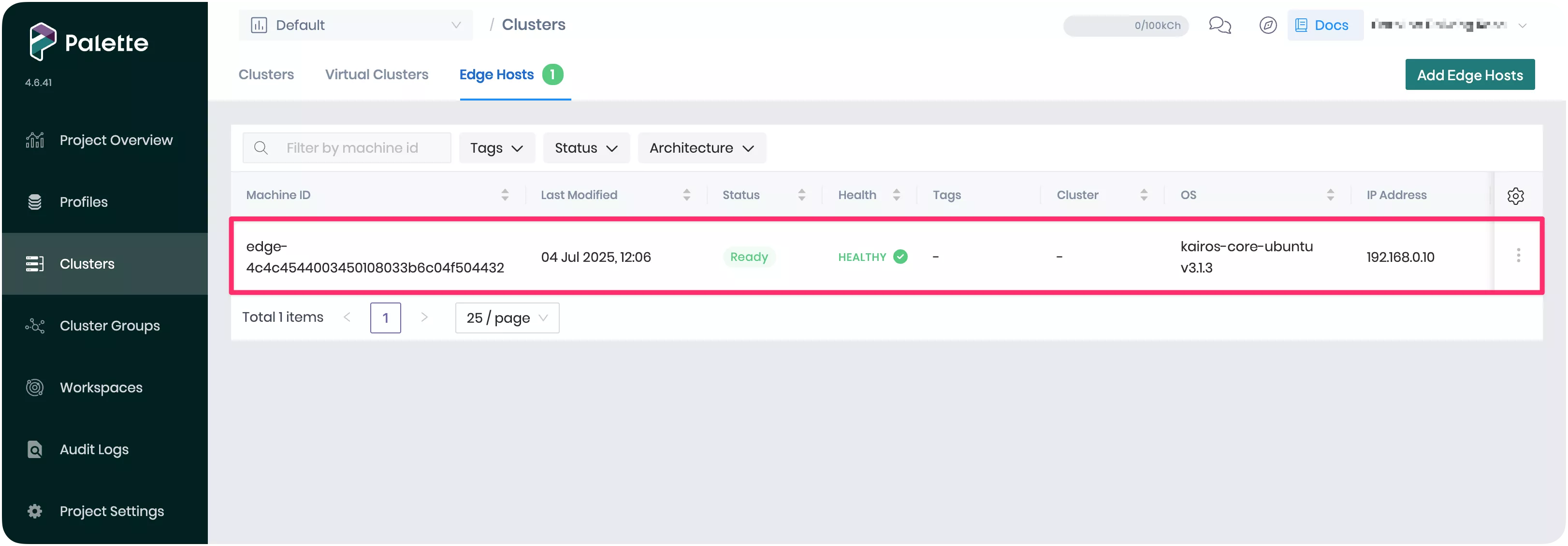

A screenshot of the Edge host in Palette.

Next Steps​

In this tutorial, you learned how to install the Palette agent on your host and register the host with Palette. We recommend proceeding to the Deploy Edge Cluster tutorial to learn how to use the registered Edge host to deploy an Edge cluster in Palette.
