Architecture

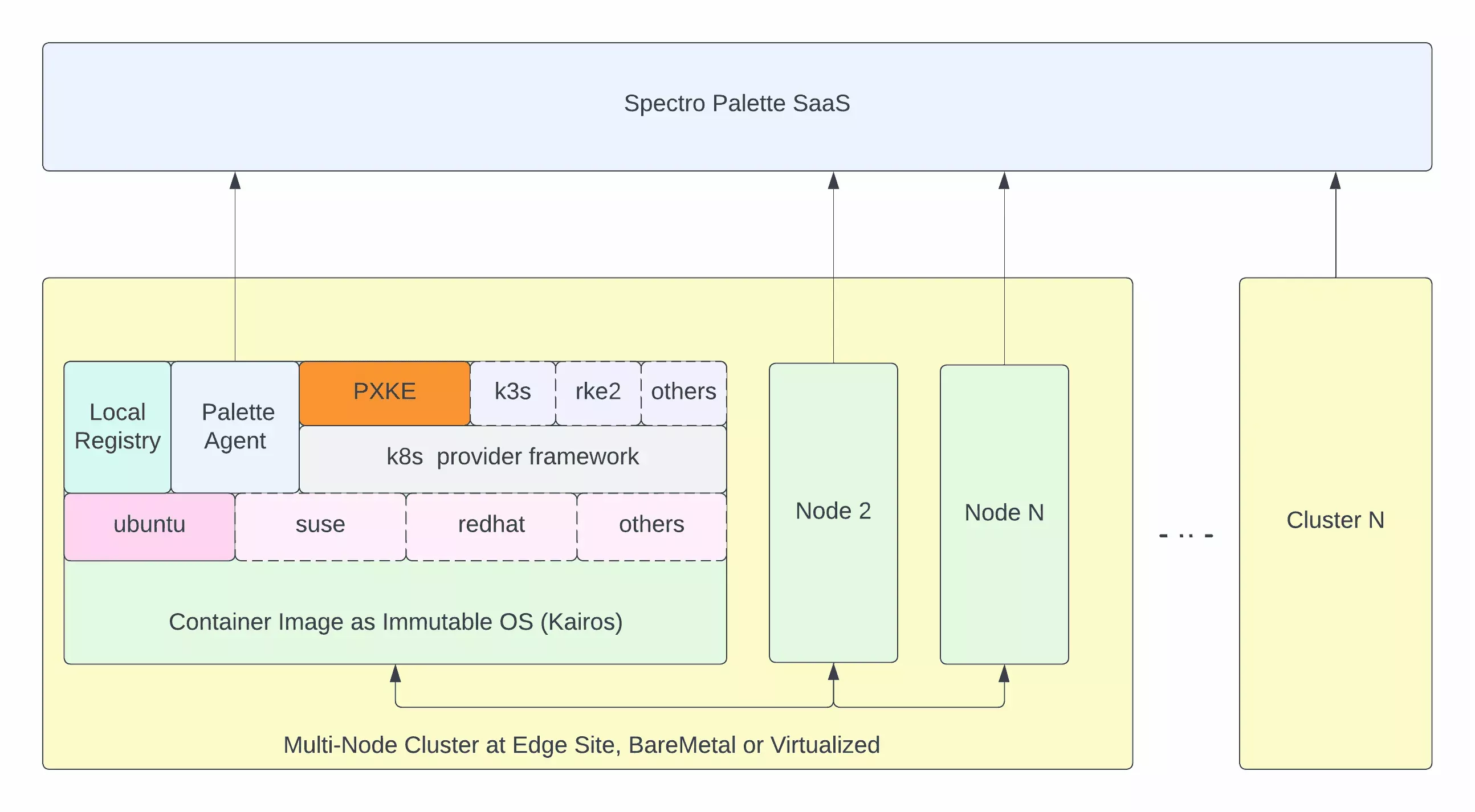

The following are architectural highlights of Palette-provisioned Edge native clusters.

• Kubernetes is natively installed on the host.

• Support for bare metal and virtualized edge devices.

• Customizable site properties such as network proxies and certificates.

• Configurable Kubernetes API servers to work with virtual IP address (VIP) or Dynamic DNS.

• Edge artifacts hardened according to Center for Internet Security (CIS) standards.

• Edge supports adding multiple devices to the site to form a multi-node Kubernetes cluster.

• Operating system (OS) images are derived from immutable container-based OS images provided by the Kairos open source project.

• The installation is bootstrapped using a relatively small distribution-agnostic Stylus installer image. The operating system and Kubernetes version are derived from cluster profile settings associated with the edge site and dynamically downloaded and installed.

• Palette Edge Distribution supports use cases that require customizing OS packages, device drivers, and more.



Limitations

• The Palette Optimized Canonical distribution that supports Canonical Kubernetes is a Tech Preview feature and does not support the following:

  • ARM64 architecture
  • Palette VerteX
  • Custom installation paths for Kubernetes and its dependencies in agent mode
  • Network overlay
  • High availability mode with one or two nodes.

• When scaling down a Palette Optimized Canonical Kubernetes cluster with two nodes, ensure you do not delete the leader node. In this configuration, one node is the leader (and voter), while the other is a spare. Deleting the leader will render the cluster inaccessible, as database updates are not replicated to the spare node.

info

The Palette Optimized Canonical Kubernetes distribution uses distributed SQLite (Dqlite) as its datastore. Each node assumes one of the following roles at any given time:

• Voter - replication and leader election voting are enabled.
• Stand-by - only replication is enabled.
• Spare - neither replication nor election is enabled.

Run the k8s status command on a control plane node to view the current roles of all nodes in the cluster.

Example output

cluster status:           ready
control plane nodes:      10.10.216.81:6400 (voter), 10.10.217.4:6400 (voter), 10.10.220.115:6400 (voter)
high availability:        yes
datastore:                k8s-dqlite

Minimum Device Requirements

All Edge hosts must meet the following minimum hardware requirements. For specific features, additional hardware capabilities may be needed. Refer to Hardware Requirements for details.

AMD64 Architecture Devices

Component	Requirement
CPU	- Intel: i3, i5, i7, i9, Xeon series - AMD: Ryzen 3, 5, 7, 9, and Epyc series
CPU Core	Minimum two cores.
Memory	Minimum 8 GB.
Storage	Main drive requires a minimum of 100 GB storage to accommodate the Operating System (OS), Kubernetes, and workloads. The main drive must be an SSD drive.

ARM64 Architecture Devices

ARM64 support is only verified for the Nvidia Jetson Orin device family.

Palette Edge Distribution

Palette provides the following distributions for edge installations.

Name	Kubernetes Distribution	OS	CNIs	CSIs
Palette Optimized K3s	K3s	openSUSE, Ubuntu	Calico, Flannel	Rook Ceph
Palette Optimized RKE2	RKE2	openSUSE, Ubuntu	Calico, Flannel	Rook Ceph
Palette eXtended Kubernetes Edge (PXK-E)	CNCF	openSUSE, Ubuntu	Calico, Flannel	Rook Ceph
Palette Optimized Canonical	Canonical Kubernetes	Ubuntu	Calico, Cilium	Longhorn

tech preview

The Palette Optimized Canonical Kubernetes distribution is a Tech Preview feature and is subject to change. Do not use this feature in production workloads.

Supported Configurations

Palette offers complete flexibility in deploying clusters at edge sites with various aspects you can customize. The table below describes these aspects and the available options.

Parameter	Choices
Management Mode	- Central: The site has a connection to Palette and is managed centrally via Palette Management Console - Local: The site does not have a connection to Palette and is managed locally.
OS	- Ubuntu - OpenSUSE - Bring Your Own OS (BYOOS)
Kubernetes Flavor	- Palette eXtended K8s for Edge FIPS (PXK-E) - Palette eXtended K8s for Edge (PXK-E) - Palette Optimized K3s - Palette Optimized RKE2 - Palette Optimized Canonical
Kubernetes Version	- 1.26.x - 1.27.x - 1.28.x - 1.29.x - 1.30.x - 1.31.x - 1.32.x - 1.33.x
FIPS Mode	- True: Enforce usage of FIPS packs and other required FIPS configuration to meet FIPS compliance - False
Edge Host Registration Mode	- Manual: A unique Edge host ID is manually entered into the Palette Management Console - Auto: Edge hosts automatically register with the Palette through the usage of a registration token supplied in the use-data - QR Code: Scan a QR code that takes you to a web application that registers the Edge host with Palette. This method is considered advanced with the benefit of simplifying the Edge host registration without needing a tenant token or a manual entry.
Edge Host Type - Installer Format	Create an ISO image that contains all your dependencies and custom configurations.

Kubernetes Defaults

The following items are disabled by default for RKE2 and K3s.

• Traefik

• SERVICE-lb

• local-path provisioner

• Flannel

Example Scenario:

For the Palette optimized K3s pack, the default network component flannel is disabled to allow the user to independently use any container network interface pack such as Flannel or others, as part of the network layer of a cluster profile.

The component metrics server is disabled to avoid duplicating it because Palette installs the metrics server by default.

cluster:
  config:
    # disable the built in cni
    flannel-backend: none
    no-flannel: true
    disable-network-policy: true
    Disable:
      - metrics-server
